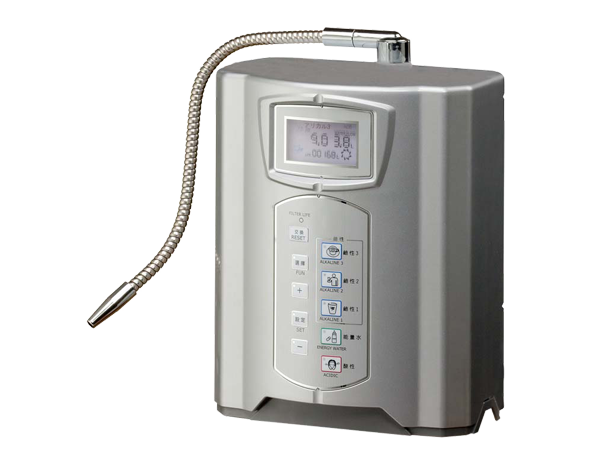

Model
T-500S
Electrode
Platinum Baked Titanium for municipal tap water
Electrolytic Cell
3 pc huge electrode plate
Electrolysis Area
Electrode plate size9x12=108cm² /pc
In total 648cm²
Size
W 23 x D 12 x H 30 / cm
Prev
Next
Back list

Color Led Monitor Display
Multi-function Indication Monitor

  • All units are designed by module combination.
  • Automatic Variable Frequency Step-less Alkaline Water Regulating System Japan Water Ionizer Filter Cartridge could remove lead and heavy metals. Its carbon fiber could anti-bacteria to gain the water hygiene effect.
  • Display and correct the ORP value and PH level.
  • Maintain ORP value in the range of -250 ~ -400mv to gain the best capability of anti-oxidize.
  • Automatic reverse flushes to the electrolytic cell.
  • Durable lifetime Electrode and Ceramic Diaphragm are imported from Japan.
  • Equipped with current over-flow and over-heat protection design and heat release system.
  • High efficiency power-managed circuit technology applied.
  • We offer all kinds of water ionizers for sale, please contact us online.
Advanced Innovation Constant Water Pressure System (Patent)

This unique Constant Water Pressure System could constrain the water pressure within the range of effective electrolysis conditions to make sure the drinking water has ORP value between -250mv ~ -400mv which is good quality promise and the ionizer device has a durable lifetime because it avoid the infect of high building water pressure difference shake to its piping fixture. This invent rectify the formal method which use IC chip to detect the water flow and adjust the voltage consequently. It will cause the water ionizer malfunction and the sediment clogged on the electrolytic cell.
Advanced Innovation Automatic Variable Frequency Fix Position System
The minerals in water will stick on the electrode plate of ionizer to induce the electric impedance value increase and degrade the efficiency of electrolysis then cause the ORP value in water insufficiently. This unique system could pre-set an effective electrolysis range; the ionizer could adjust automatically by variable frequency within this range to assure the drinking water is good and stable output.

Model
J-1080
B-864
B-648/J648
Specification Comply with customer's requirement. Comply with customer's requirement. Comply with customer's requirement.
Input Current 110V~250V 110V~250V 110V~250V
Size WxHxD cm 23cm×33cm×14cm 23cm×33cm×14cm 23cm×33cm×14cm
Weight (without water) Approx. 5.5kg Approx. 5kg Approx. 5kg
Electrode Material Kobe Steel Japan - Platinum Baked Titanium for municipal tap water. (Material report is included.) Kobe Steel Japan - Platinum Baked Titanium for municipal tap water. (Material report is included.) Kobe Steel Japan - Platinum Baked Titanium for municipal tap water. (Material report is included.)
Number of poles 6 poles 5 poles 4 poles
Electrode Watts MAX 160W MAX 160W MAX 120W
Cleanse Setting Automatic flow-rate counting and moving picture display cleansing process. Flow-rate counting is adjustable. Automatic flow-rate counting and moving picture display cleansing process. Flow-rate counting is adjustable. Automatic flow-rate counting and automatic cleanse as 40L water produced.
PH Value Adjust Alkaline Water 12 Stages Alkaline Water 12 Stages Alkaline Water 3 Stages
Filtered Water 1 Stage Filtered Water 1 Stage Filtered Water 1 Stage
Acidic Water 1 Stage Acidic Water 1 Stage Acidic Water 1 Stage
ORP Value MAX -500mv MAX -500mv MAX -320mv
Filter Material Japan made anti-bacteria and lead remove carbon fiber (Appearance & lifetime reports are included.) Japan made anti-bacteria and lead remove carbon fiber (Appearance & lifetime reports are included.) Japan made anti-bacteria and lead remove carbon fiber (Appearance & lifetime reports are included.)
Diaphragm Material Japan made ceramic diaphragm Japan made ceramic diaphragm Japan made ceramic diaphragm
Water Spout Bendable Pipe Japan made stainless steel bendable pipe (Lifetime report is included.) Japan made stainless steel bendable pipe (Lifetime report is included.) Japan made stainless steel bendable pipe (Lifetime report is included.)
Filter Lifetime Display LCD moving picture and digit display. LCD moving picture and digit display. LCD digit display.
Electrode Lifetime Display LCD moving picture and digit display. LCD moving picture and digit display. LCD digit display.
LCD Color 4 colors backlight LCD display 4 colors backlight LCD display 3 colors backlight LCD display
LCD Display Type Moving picture display. Moving picture display. Fix picture display
ORP/PH Display Type ORP/PH fixed position display ORP/PH fixed position display PH fixed position display
Electrolysis Power Adjust Three stages power adjust. (High, Mid, and Low) Three stages power adjust. (High, Mid, and Low) Electrode fixed power builded.
Inspection Certification Pass CE and EMC standard. (Complete test report is included.) Three stages power adjust. (High, Mid, and Low) Pass CE and EMC standard. (Complete test report is included.)
Model T-500S S-350 S-320
Specification Comply with customer's requirement. Comply with customer's requirement. Comply with customer's requirement.
Input Current 110V~250V 110V~250V 110V~250V
Size WxHxD cm 20cm×30cm×16cm 20cm×30cm×16cm 20cm×30cm×16cm
Weight (without water) Approx. 4kg Approx. 4kg Approx. 4kg
Electrode Material Kobe Steel Japan - Platinum Baked Titanium for municipal tap water. (Material report is included.) Kobe Steel Japan - Platinum Baked Titanium for municipal tap water. (Material report is included.) Kobe Steel Japan - Platinum Baked Titanium for municipal tap water. (Material report is included.)
Number of poles 4 poles 3 poles 3 poles
Electrode Watts MAX 120W MAX 120W MAX 120W
Cleanse Setting Automatic flow-rate counting and automatic cleanse as 40L water produced. Automatic flow-rate counting and automatic cleanse as 40L water produced. Automatic flow-rate counting and automatic cleanse as 40L water produced.
PH Value Adjust Alkaline Water 3 Stages Alkaline Water 3 Stages Alkaline Water 3 Stages
Filtered Water 1 Stage Filtered Water 1 Stage Filtered Water 1 Stage
Acidic Water 1 Stage Acidic Water 1 Stage Acidic Water 1 Stage
ORP Value MAX -320mv MAX -320mv MAX -320mv
Filter Material Japan made anti-bacteria and lead remove carbon fiber (Appearance & lifetime reports are included.) Japan made anti-bacteria and lead remove carbon fiber (Appearance & lifetime reports are included.) Japan made anti-bacteria and lead remove carbon fiber (Appearance & lifetime reports are included.)
Diaphragm Material Japan made ceramic diaphragm Japan made ceramic diaphragm Japan made ceramic diaphragm
Water Spout Bendable Pipe Japan made stainless steel bendable pipe (Lifetime report is included.) Japan made stainless steel bendable pipe (Lifetime report is included.) Japan made stainless steel bendable pipe (Lifetime report is included.)
Filter Lifetime Display LCD digit display. LCD digit display. Light & Sound Notice
Electrode Lifetime Display LCD digit display. LCD digit display. Light & Sound Notice
LCD Color 3 colors backlight LCD display 3 colors backlight LCD display Nil
LCD Display Type Fix picture display Fix picture display Nil
ORP/PH Display Type ORP/PH fixed position display ORP/PH fixed position display Nil
Electrolysis Power Adjust Electrode fixed power builded. Electrode fixed power builded. Electrode fixed power builded.
Inspection Certification Pass Internal Quality Control Test Pass Internal Quality Control Test Pass Internal Quality Control Test
