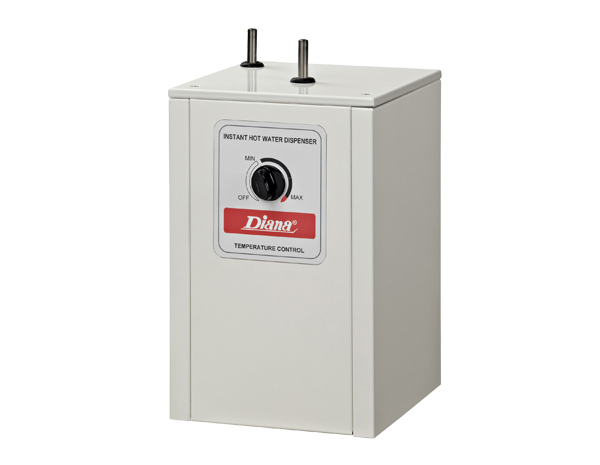

Instant Hot Water Dispenser W-301 - Pressure Free Type
- Energy-efficiency：Consumes less electricity than a 40 watt light bulb.
- Green Material：The best material of thermal insulation meets the UL94 standard.
- Prevent Empty Burning : Automated Heater Protection
- Safety：Unique safety lock design loaded to prevent burns.
- Hygienic：Design of detachable stainless steel tank can be cleaned after using for a period of time. A large 2.4 liter tank supplies plentiful 60 cups per hour capacity.
- Innovation： SUS316L Ring Type Heater. Bigger heating area, faster heat conduction, more power-efficient, and longer lifetime.
- New Invention： Self-priming expansion chamber. New design model greatly reduces the dripping (the flaw of traditional instant hot water dispenser)
Instant Hot Water Dispenser

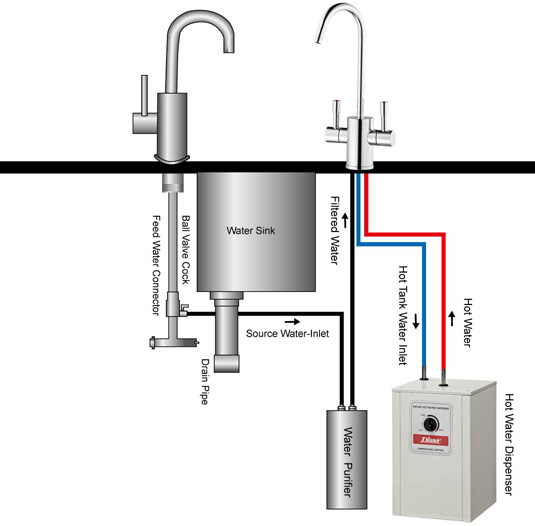

■ Under-sink Hot Water Heater is a very popular and fashion product in USA, Japan, and
many advanced countries. It could supply hot water instantly and saving space as well as replenish the source water automatically.
[New Invention] Diana Patented Self-priming Expansion Chamber
■ Through the chamber and atmospheric pressure during heating, the self-priming expansion chamber absorbs the steam back for recycling usage. This new design greatly reduces the dripping (the flaw of traditional instant hot water dispenser).
■ Due to the high temperature of water during heating, the tank is under pressure. The self-priming expansion chamber can decrease the pressure, prevent explosion, dripping and leak.
[New Invention] Automated Heater Protection
■ When there's no water left in the tank, the self re-setting thermal fuse protects the product from dry boiling and dry start up.
[New Invention] SUS304 Ring Type Heater
■ SUS316L ring type heater is better than U-shape brass made heater.
No liberation of heavy metal will occur. It's relatively more hygienic and durable.
■ Heat conduction area of Ring Type heater is twice as large as the U-shape brass heater.
It has the features of faster heat conduction, more power-efficient, and longer lifetime.
■ Heater with 780/1300 wattage is more efficient than other brands.
[New Invention] Detachable Stainless Steel Tank
■ A large 2.4 liter tank supplies plentiful 60 cups per hour capacity.
■ Upper and lower tank bodies are fixed with clamp. The new design "detachable stainless tank" can be cleaned after using for a period of time.
■ The new tank is made of ST304, built in integral body. No welding joint or seam on the tank exist. Therefore, no leak and liberation of heavy metal will occur.
[New Invention] Diana Patented Faucet with Safety Lock
■ Unique safety lock design is loaded to prevent kids from burns by hot water.
Features of Instant Hot Water Dispenser W-301
